KCT2494G93T11AB
WLAN 2.4G / 5G 双工器产品
产品介绍

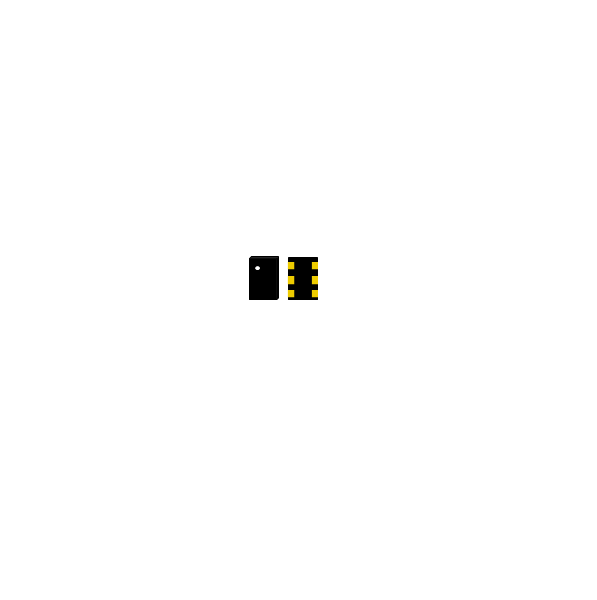

KCT2494G93T11AB 是一种从 WLAN 天线分离 2.4GHz 和 5GHz 信号的双工器。 该部件安装在一个 1.6 x 0.8 毫米基于层压板的包覆成型模块中。 该设备为 Wi-Fi 2.4GHz 和 5GHz 信号提供出色的插入损耗，同时有效地保护每个频段免受另一个频段的影响。 该双工器设计为与 50 欧姆本机匹配，不需要外部匹配。
KCT2494G93T11AB is a module that splits 2.4GHz and 5GHz signals from a single WLAN antenna. The part is housed in a 1.6 x 0.8 mm laminate-based over-molded module. This device provides excellent insertion loss for both the 2.4GHz and 5GHz signals while effectively protecting each band from the other. This diplexer is designed to match natively to 50 Ohms. No external matching is required.
产品规格
| Type | Infrastructure |
| Frequency (MHz) | 2,400 to 2,496, 4,900 to 5,950 |
| Bandwidth (MHz) | 40, 80, 160 |
| Insertion Loss (dB) | 0.43, 0.56 |
| Attenuation (dB) | 34, 30 |
| Package Type | Laminate |
| Package (mm) | 1.6*0.8 |
